In wire and cable production, Wire Guide Dies and Guide Bushings are essential tools used to guide wires smoothly.
For most general applications, precision requirements are low. The key considerations are: no scratch resistance, wear resistance, and reasonable cost.
Based on current material prices and real-world working conditions, here is the most practical selection guide.

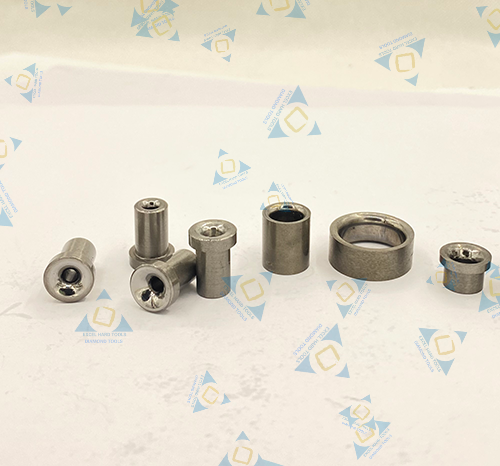

1. Solid Tungsten Carbide Wire Guide Die
Profile
Offers the highest wear resistance and longest lifespan. However, due to significant price increases in recent years, it is no longer the most cost-effective option for standard use.
Suitable for:
• High-speed, long-hour continuous production lines
• Heavy-duty applications involving long-term drawing of copper, aluminum, and other metal wires
• Production lines where downtime for die changes is costly
Advantages:
• Extreme hardness (HRA 90+), superior wear resistance
• Robust structure, high impact resistance
• Highly polished surface, prevents wire scratching
Not suitable for:
• Budget-conscious general wire guiding applications

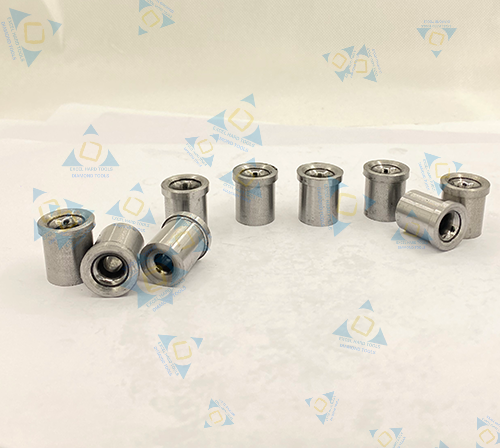

2. Carbide Insert with Steel Casing (Most Recommended | Best Cost Performance)
Profile
This is the most popular and economical mainstream solution in the industry today.
Suitable for:
• The majority of general wire and cable guiding tasks
• Applications with standard precision requirements, where stable wire guiding is the main priority
• Customers seeking a balance between durability and cost control
Advantages:
• Internal Carbide Insert: Ensures a smooth, wear-resistant guiding surface.
• External Steel Casing: Provides strong structural support and strength.
• Significantly lower cost compared to solid carbide dies.
• Universal installation standard; easy to replace the inner insert only when worn.
Summary:
The first choice for most cable factories and wire manufacturers. It is durable, reliable, and cost-efficient.

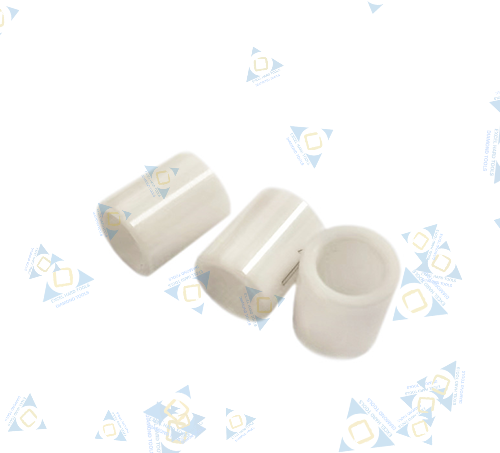

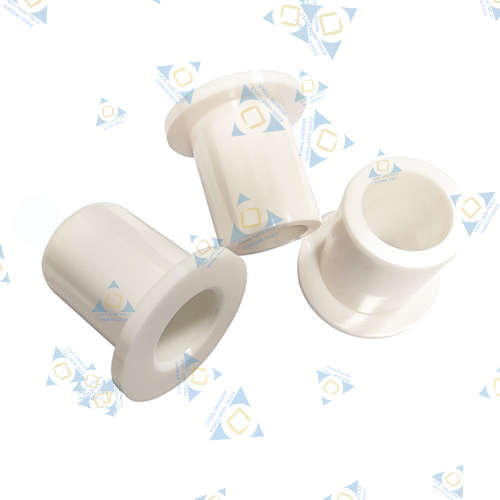

3. Ceramic Guide Bushing / Wire Guide Die
Profile
Designed for specific applications. It does not compete on extreme wear life; instead, it excels in smoothness and insulation.
Suitable for:
• Positions requiring electrical insulation (non-conductive)
• Applications demanding high surface quality protection (no scratching)
• Medium-low speed guiding, where no adhesion of copper or aluminum dust is critical
Advantages:
• True mirror-finish surface after polishing, offering a smoother finish than carbide
• Non-adhesive to metals, preventing clogging and scratches
• Fully insulated, high temperature and corrosion resistant
Cautions:
• Hardness and wear resistance are inferior to tungsten carbide.
• Shorter lifespan than carbide in high-speed, long-duration operations.
• Brittle material; avoid strong impacts or collisions.
One-Sentence Selection Summary
1. General purpose, best value → Carbide Insert with Steel Casing (Top Pick)
2. High-speed, long-term production, maximum durability → Solid Tungsten Carbide
3. Insulation needed, ultra-smooth finish, no scratching → Zirconia Ceramic
Our Wire Guide Dies and Guide Bushings are specifically designed for wire and cable guiding. With low precision requirements, the focus is on providing a smooth, wear-resistant, and affordable solution. For most applications, the Carbide Insert with Steel Casing offers the optimal balance of performance and economics.
